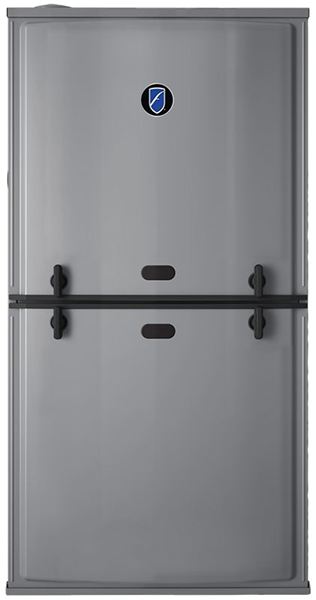

  • FR801T-Ultra-Low-NOx-Endeavor--Line-F-Series--Gas-Furnace
  • Ultra Low Greenhouse Gas Emissions: Certified unit meets 14ng/j NOx emission standard – reducing NOx emissions by 65%
  • PlusOne® Diagnostics: 7 Segment LED all units
  • PlusOne® Ignition System: Proven Direct Spark Ignition (DSI) for reliability and longevity
  • Low profile, 34-inch Cabinet: Makes our furnaces ideal for space-constrained installations
  • Hemmed Cabinet & Door Edges and Quarter-Turn Door Fasteners: Allows for safe, tool-less access and serviceability
  • Removable Heat Exchanger: Aluminized steel construction provides maximum corrosion resistance and thermal fatigue reliability
  • Blower Shelf Design: Ensures serviceability in all furnace orientations
  • Cabinet Air Leakage less than 2%: at 1 inch H2O when tested in accordance with ASHRAE Standard 193
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Input

Heating Capacity

Motor H.P.

Approx. Shipping Weight

N/A 50000 Btu/h14.6 kW N/A 40000 Btu/h11.7 kW N/A 1/2 hp373 W N/A 57 kg125 lb
N/A 50000 Btu/h14.6 kW N/A 40000 Btu/h11.7 kW N/A 3/4 hp560 W N/A 57 kg125 lb
N/A 70000 Btu/h20.5 kW N/A 56000 Btu/h16.4 kW N/A 1/2 hp373 W N/A 57 kg125 lb
N/A 70000 Btu/h20.5 kW N/A 56000 Btu/h16.4 kW N/A 3/4 hp560 W N/A 57 kg125 lb
N/A 100000 Btu/h29 kW N/A 80000 Btu/h23.4 kW N/A 3/4 hp560 W N/A 64 kg140 lb
N/A 100000 Btu/h29 kW N/A 80000 Btu/h23.4 kW N/A 1 hp746 W N/A 64 kg140 lb
